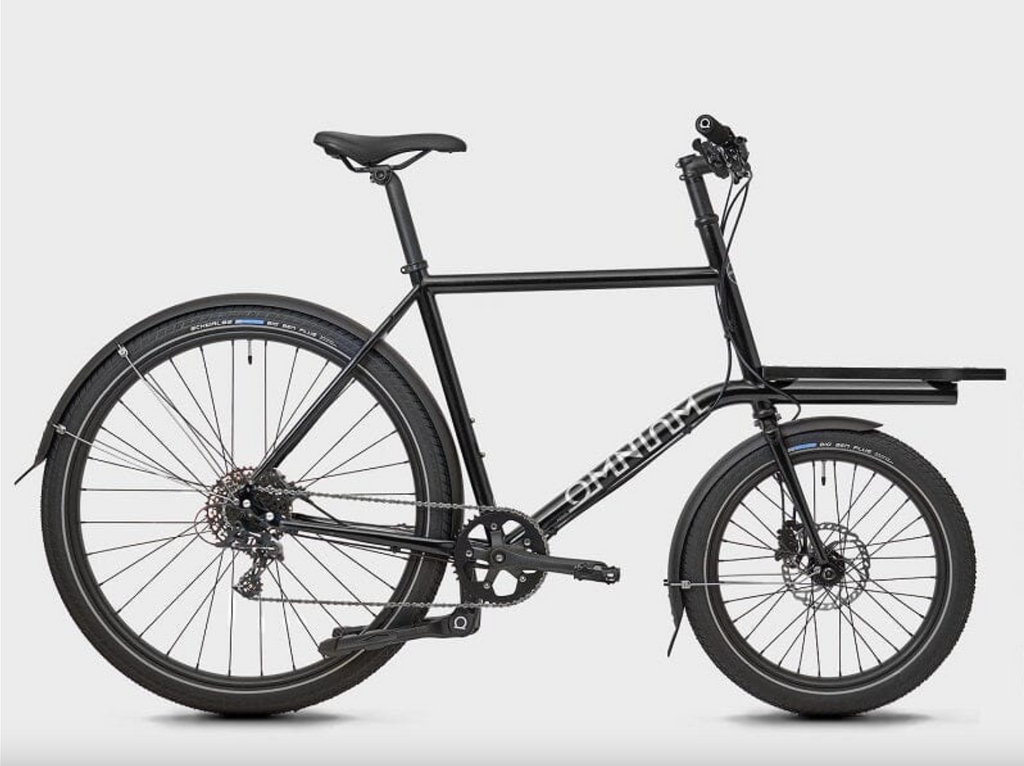

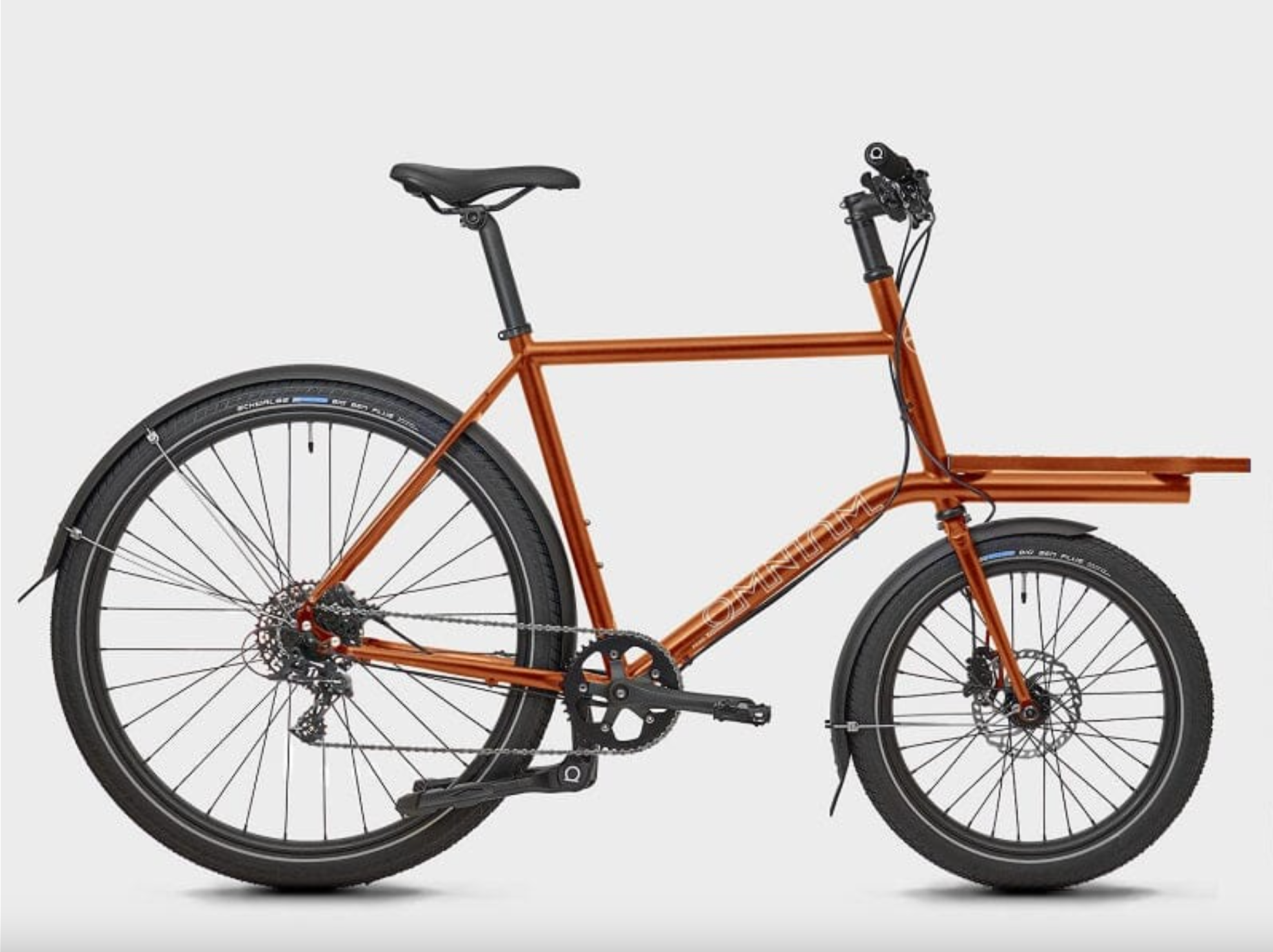

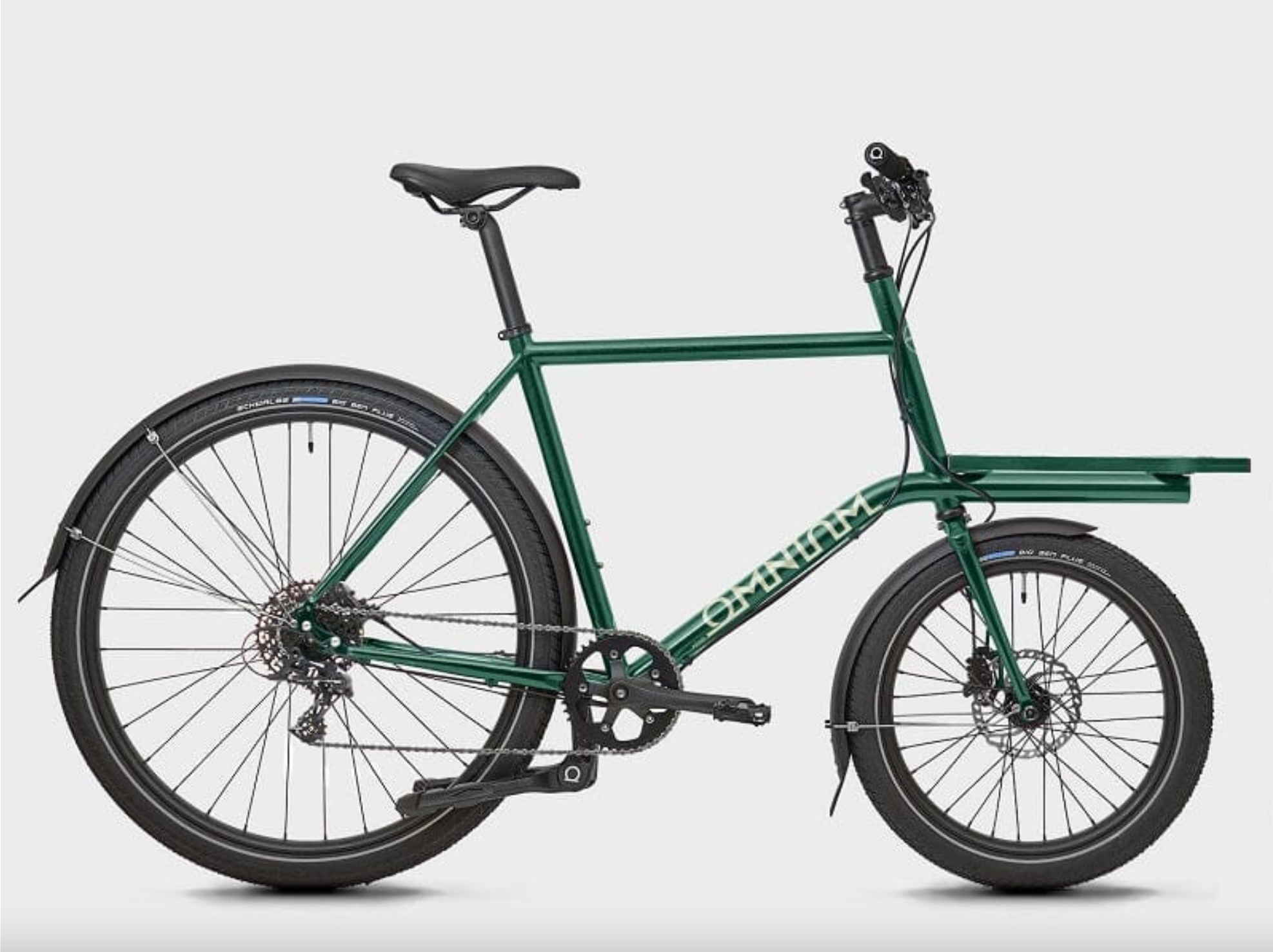

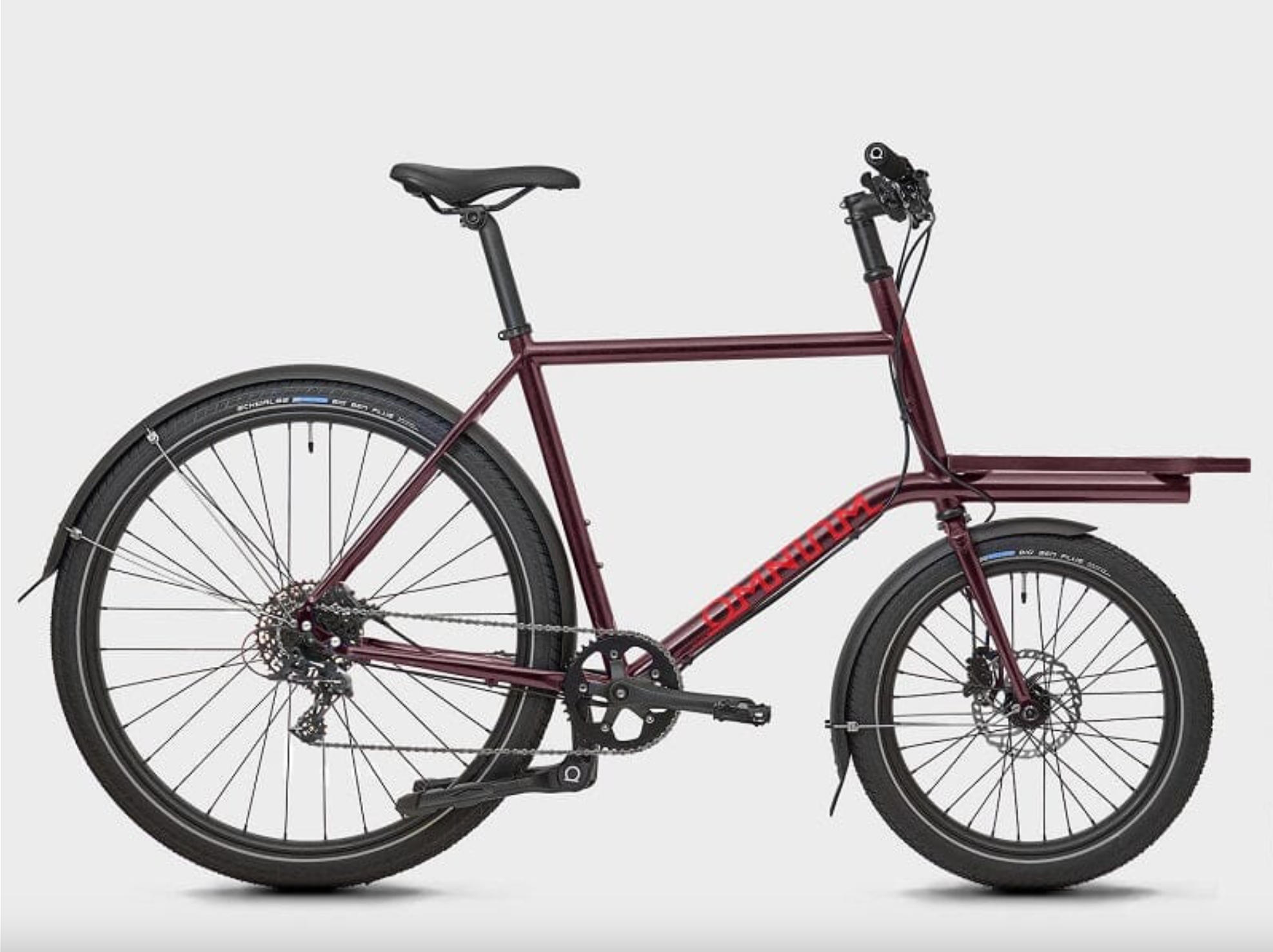

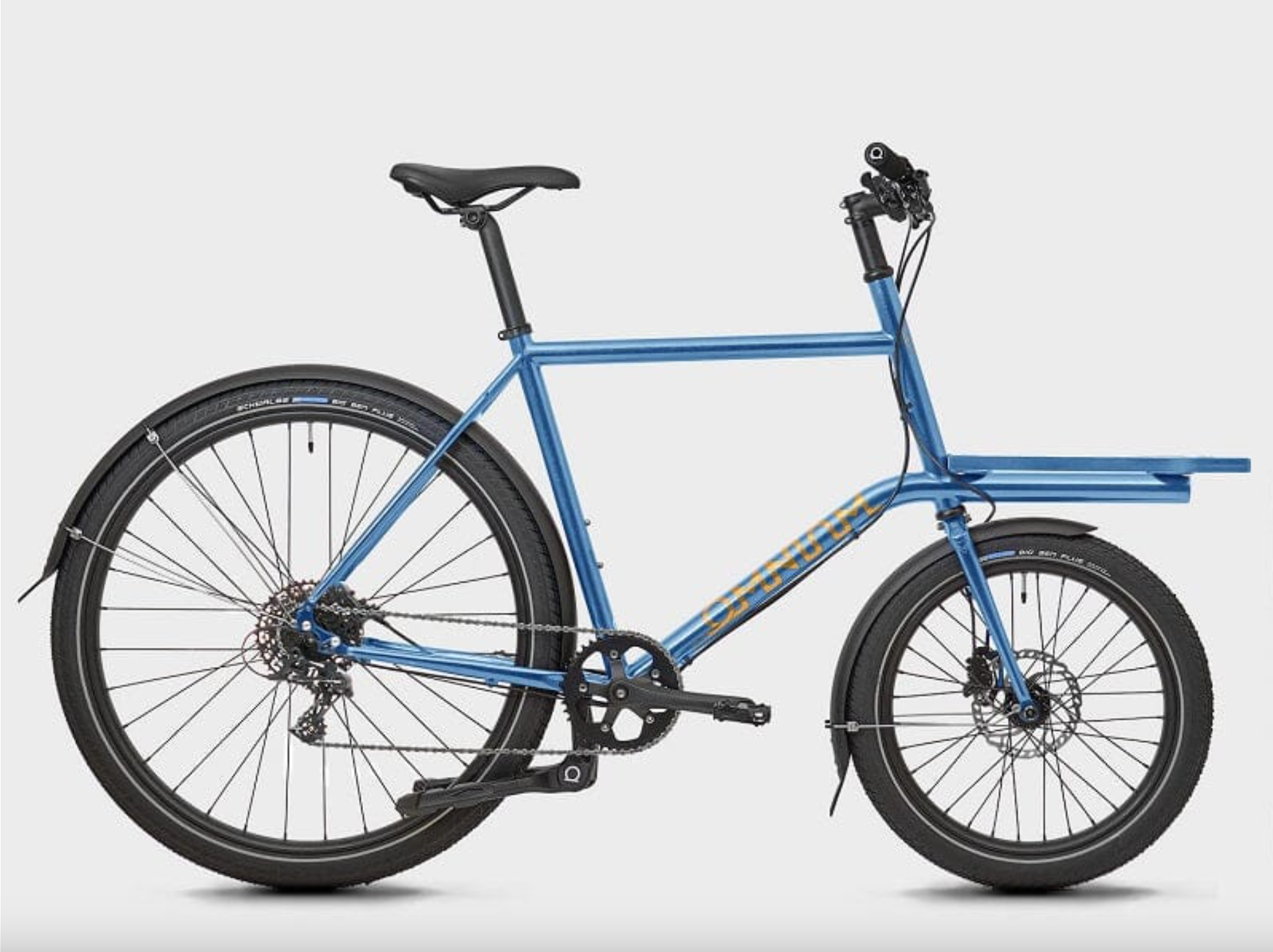

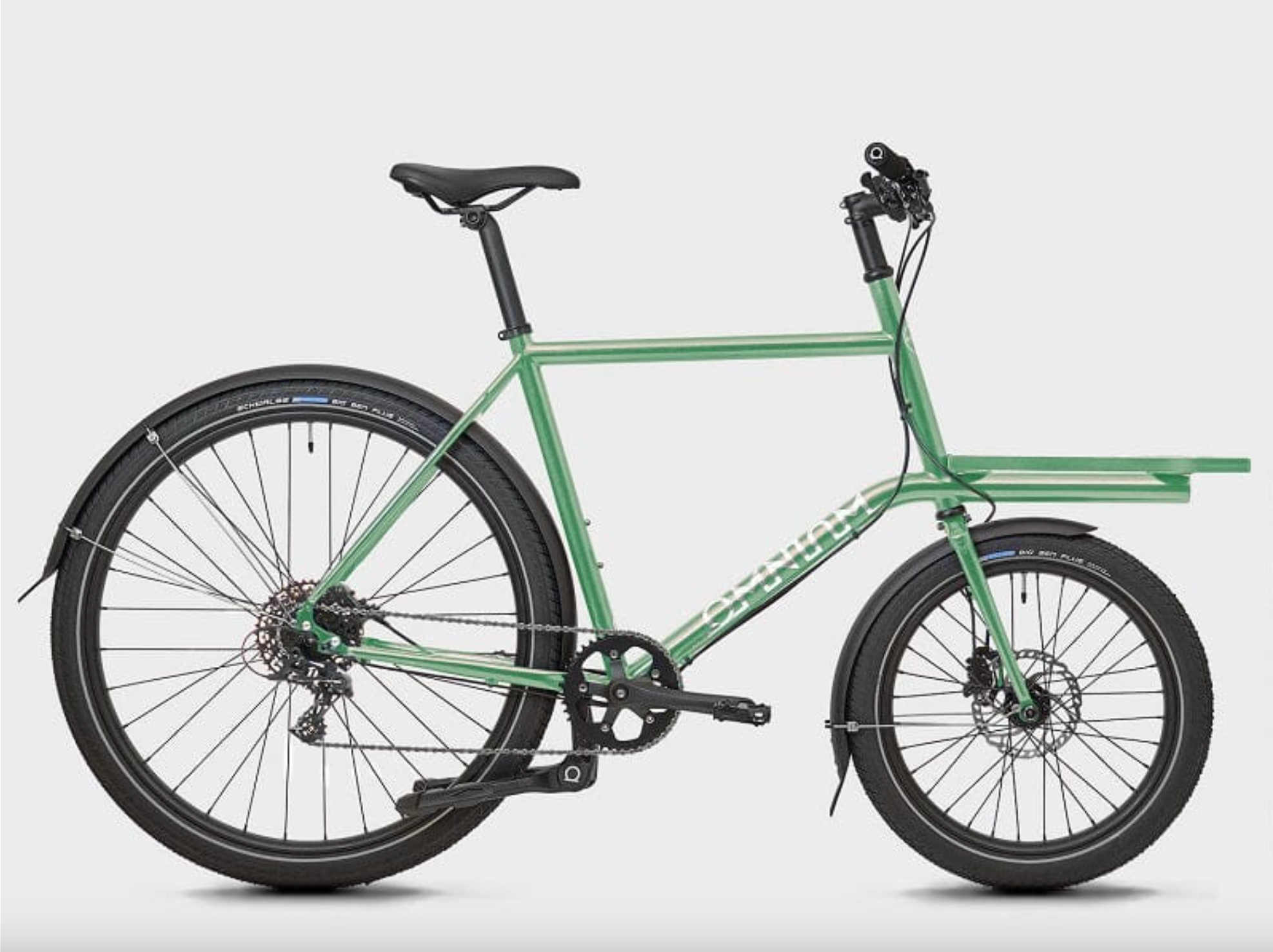

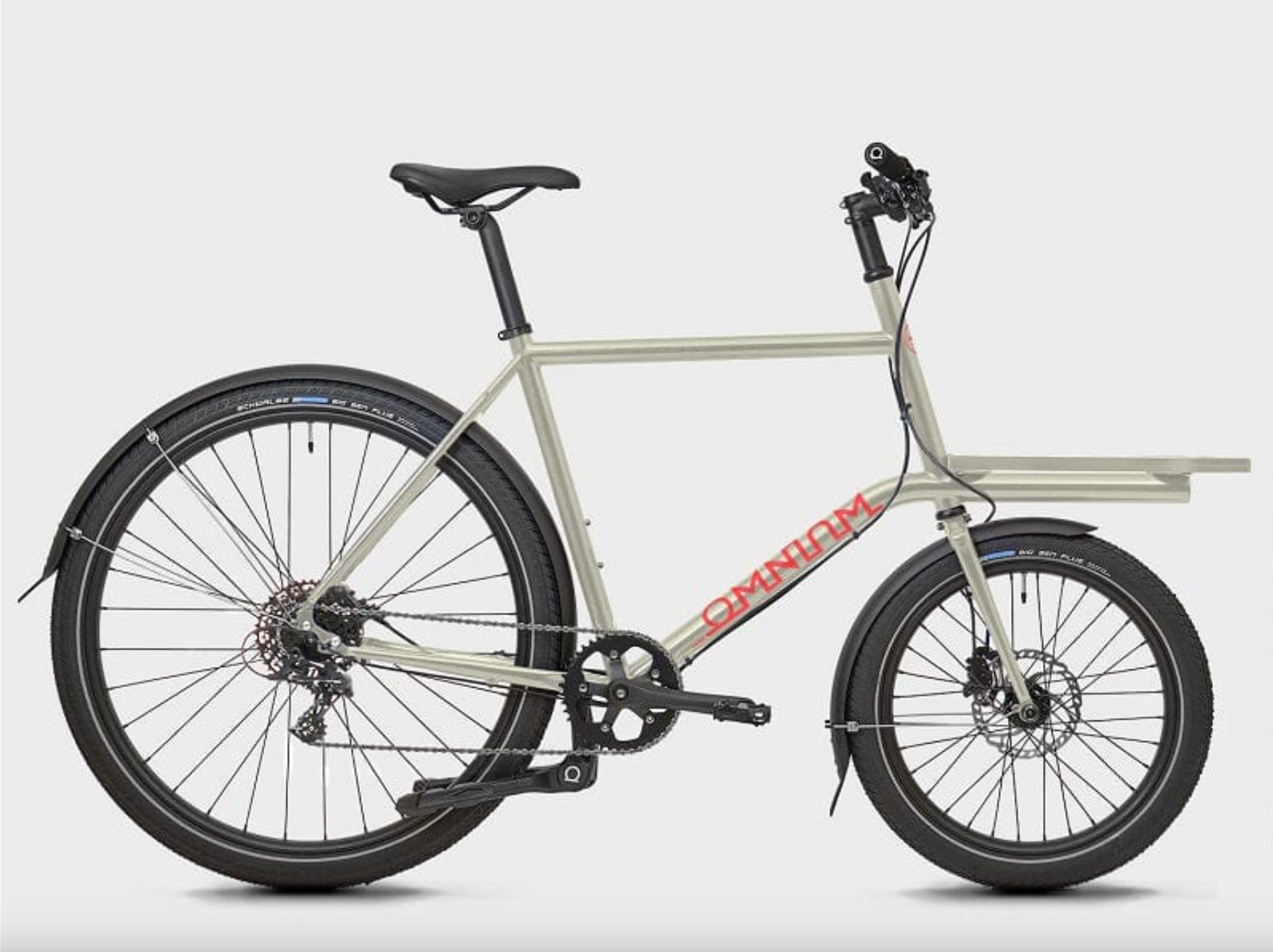

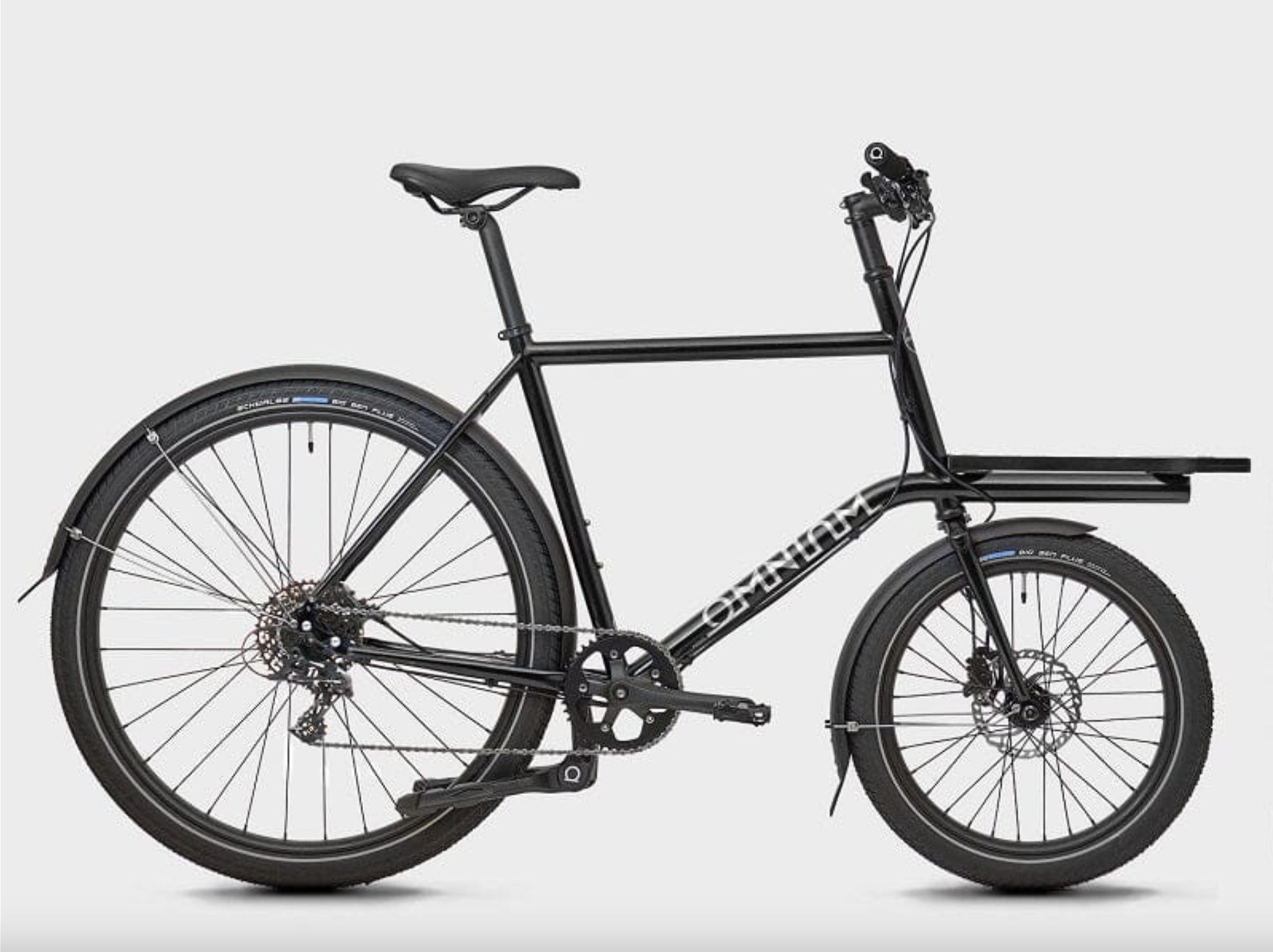

OMNIUM Mini V3 Complete SRAM APEX11 [Pre-Order]
The Mini almost speaks for itself. It’s a normal bike with a front rack on steroids!
Its manageable size makes handling familiar, and multimodal transportation a breeze. The rack is ideal for getting around with a load too big for a backpack, and perfect for putting it out front where you can keep an eye on it.
Significant loads on the Mini are a non-issue as long as they are more or less kept within the rack‘s size. The weight of the load has very little influence on steering, giving you surprising amounts of confidence, as the rack‘s support is built directly into the frame.
We like to think this is the most playful cargo bike out there!
SPECIFICATIONS
Frame Material : Double-Butted Chromoly Steel Frame
Size : XS, S, M, L, XL
Seat Post Diameter : 31.6 mm
Seat Clamp Size : 34.0 mm
Rear wheel : TA: 622, 12 x 142 mm spacing, disc only, Front wheel 406, 15 x 100 mm spacing, disc only
Tire clearance (front) : 55 mm with mudguards
Tire clearance (rear) : 55mm with mudguards
Mudguards : Included
Through axle (front) : 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Through axle (rear) : 15×100, 125mm long, 17mm thread length, 1.5mm pitch
Bottom bracket : BSA 68mm
Steerer Headset : 1 1/8″ Ahead
Stem : 80mm
Handlebar : 700mm riser bar included
Q Factor : 145mm
Pedals: Included
Rack : 40cm x 42cm, made of Aluminum
Rack weight : 1320g +/-
Rack Bolt Size : M8 x 15mm
Weight (complete bike size M) : 18kg
Recommended maximum loading weight including rider : 125 kg

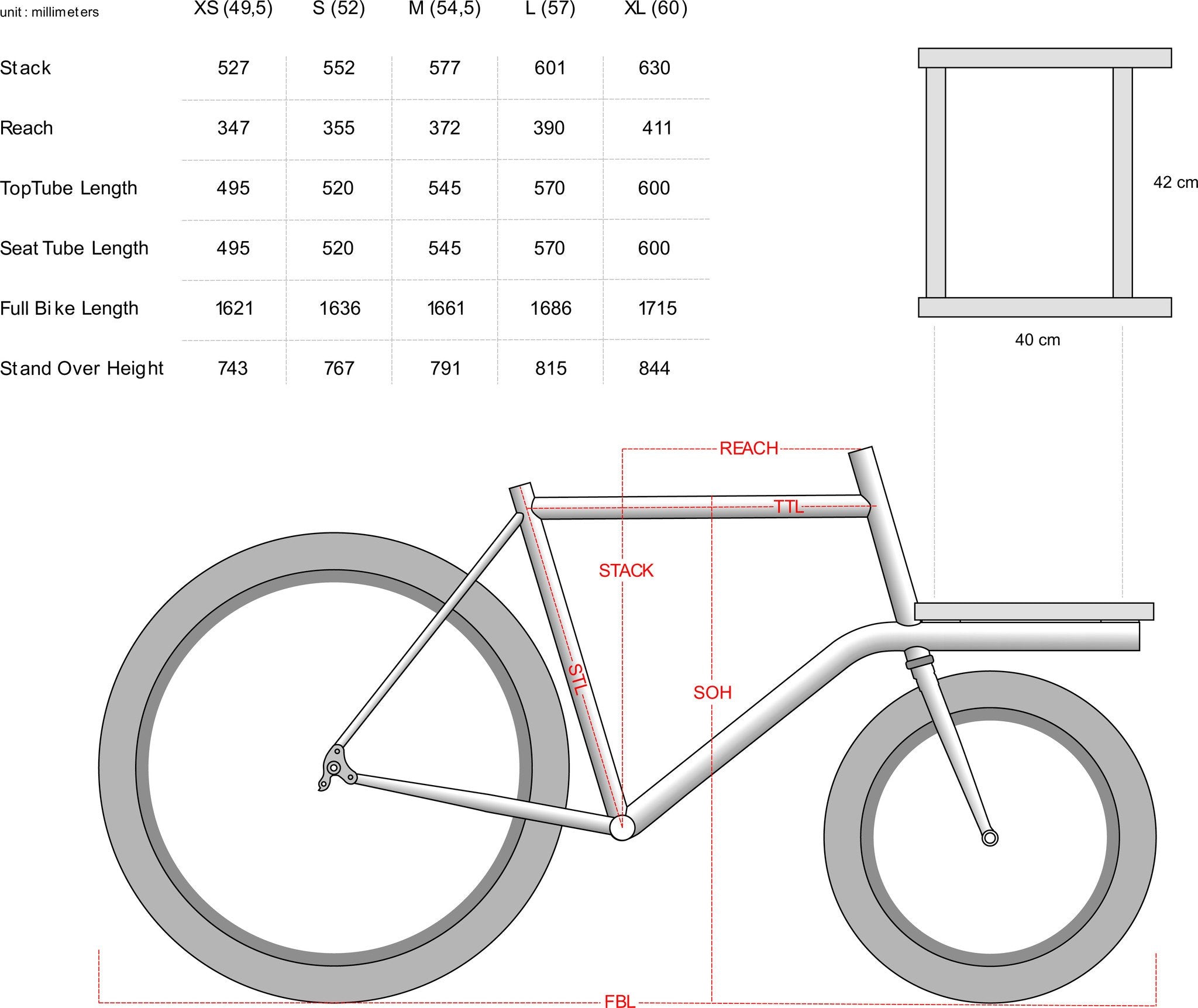

SIZE GUIDE
Height: 155 - 165cm - recommended frame s ize - size X-S mall
Height: 165 - 175 cm - recommended frame size - size Medium
Height: 175 - 185cm - recommended frame size size Small
Height: 175 - 185cm - Recommended frame size - size Medium
Height: 185 - 195cm - Recommended frame size - size Large
Height: 195 - 205cm - recommended frame size - size X-Large
