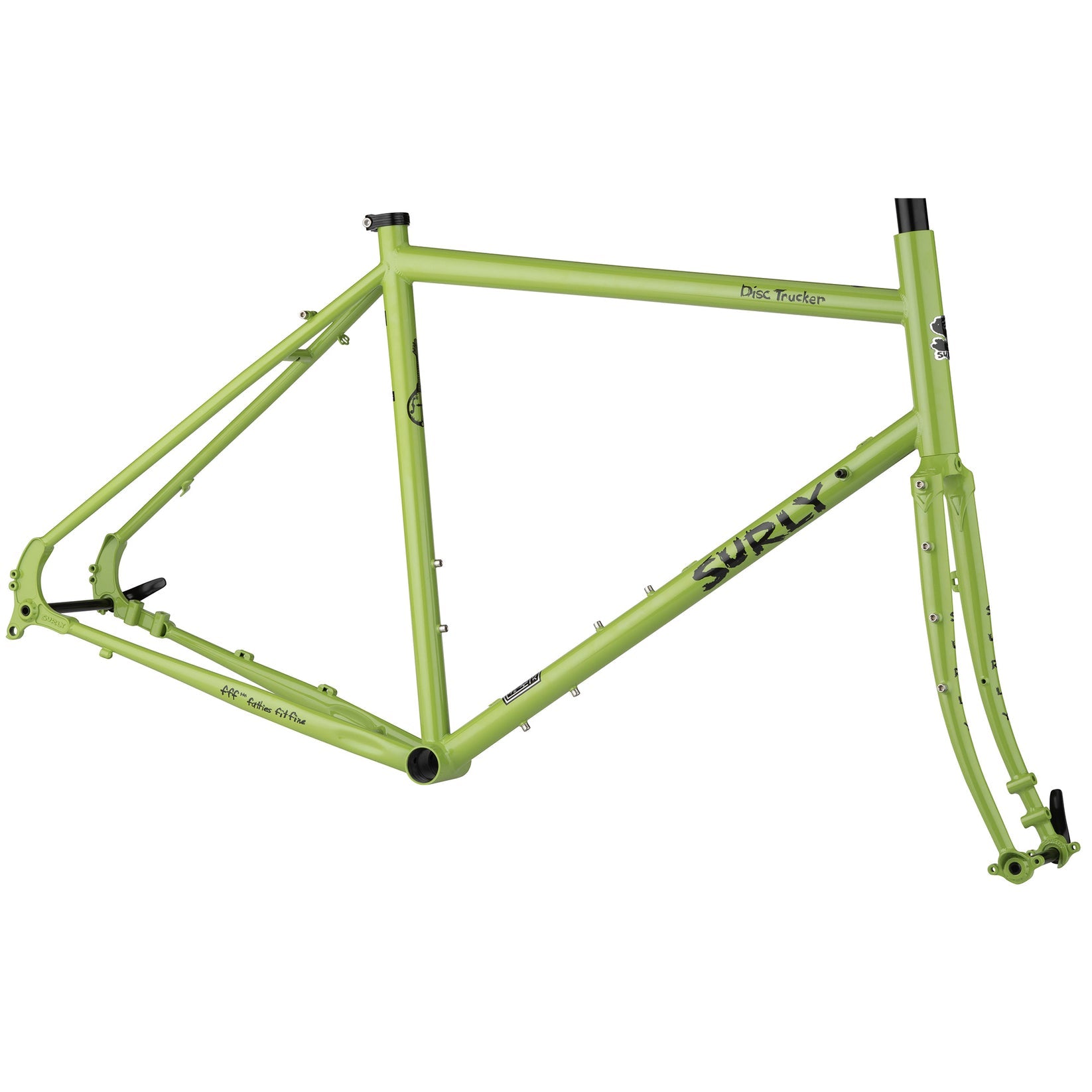

Surly Disc Trucker 26" Frameset - Pea Lime Soup (54cm)

Why Disc Brake Touring Bikes?

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

• Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
• 12mm thru-axles for a stiffer feel and increased stability when fully loaded
• Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
• Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
• Flat-mount disc brakes
• Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
• Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders

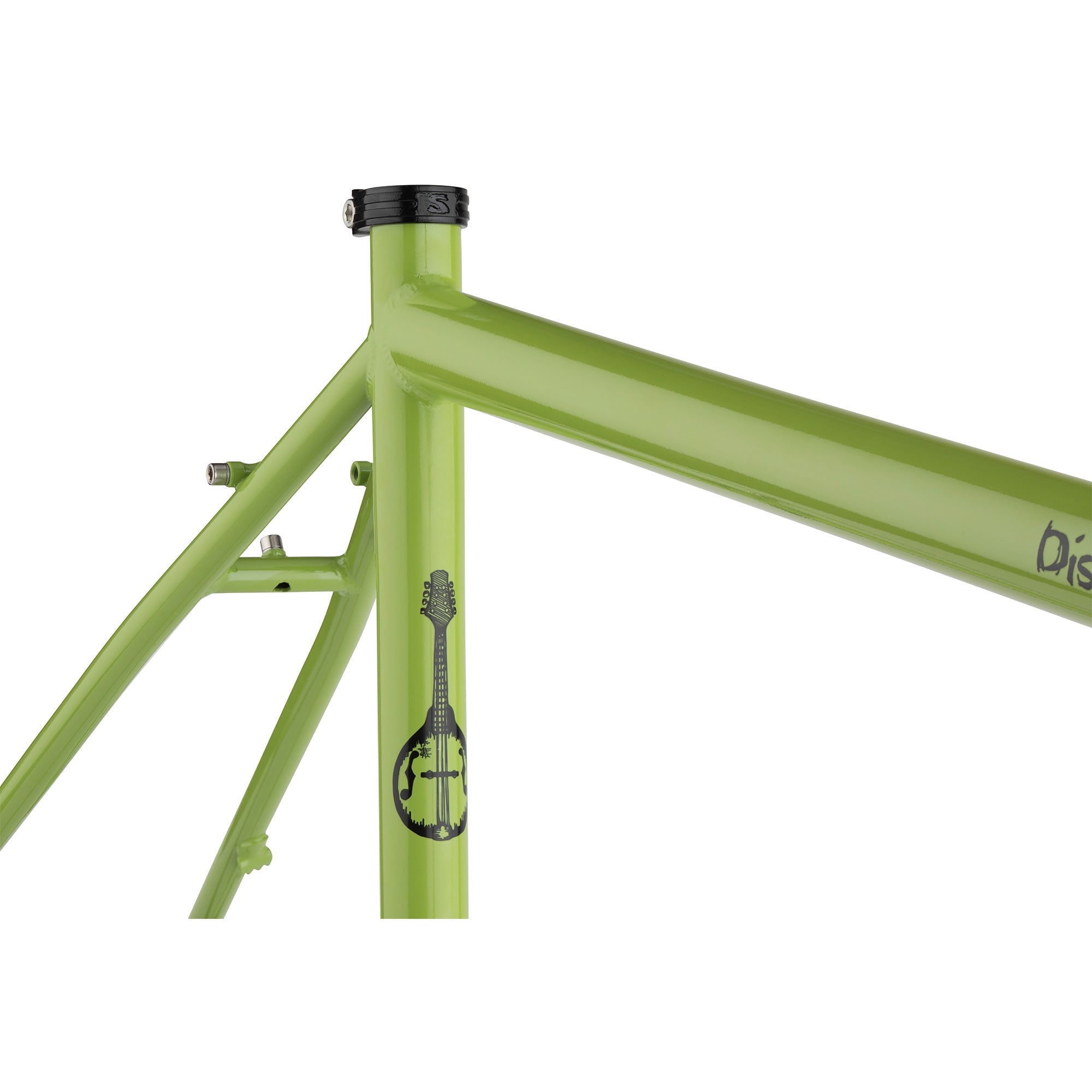

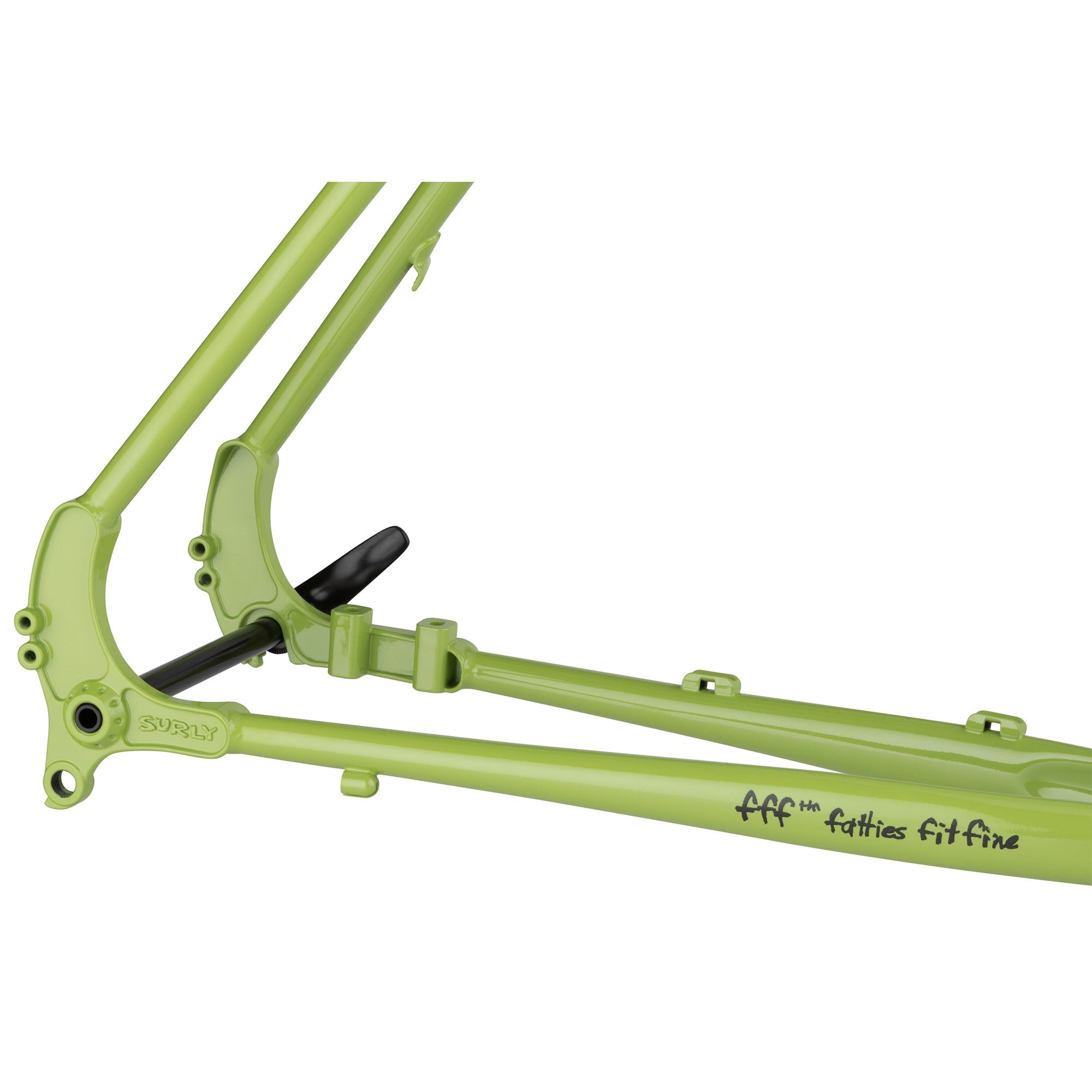

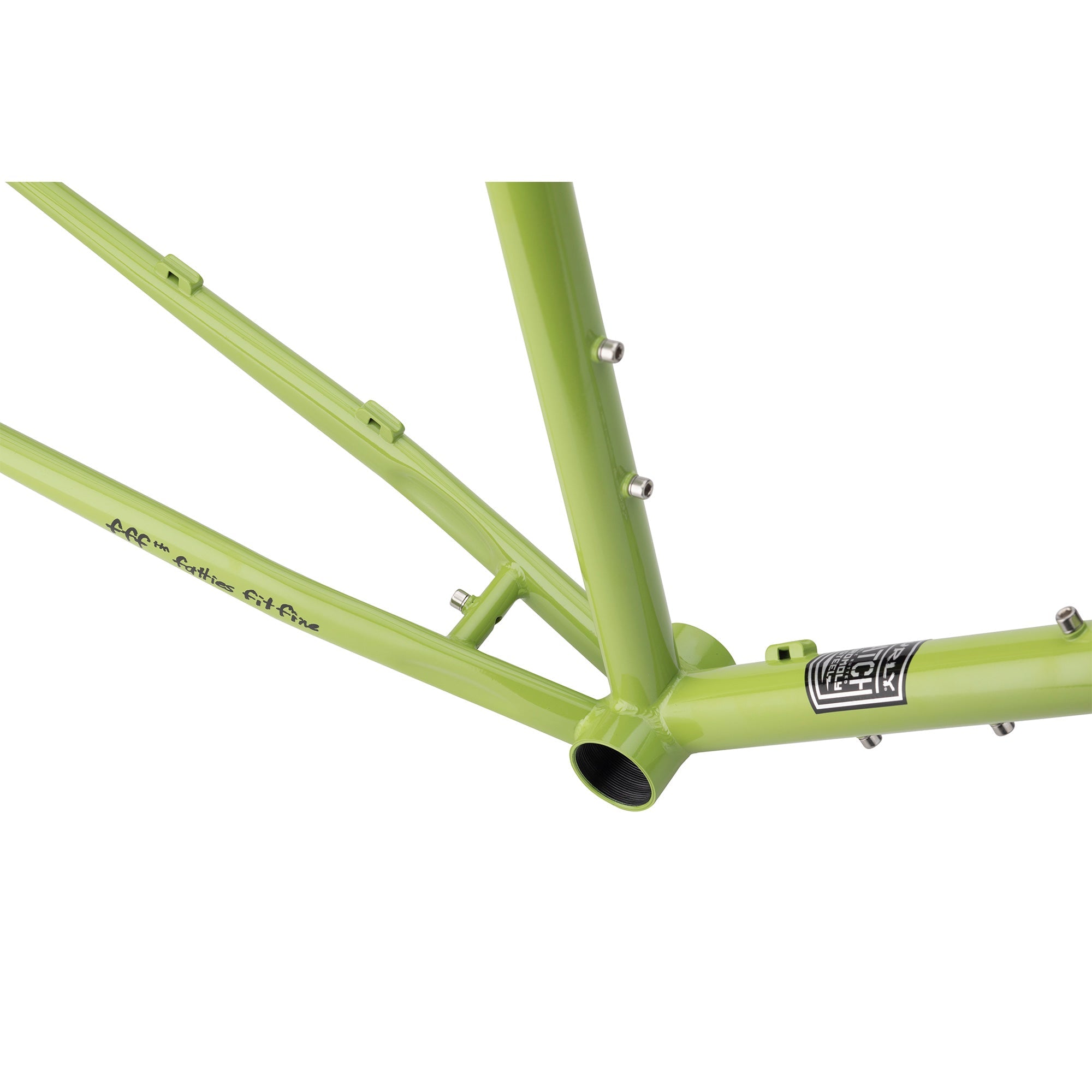

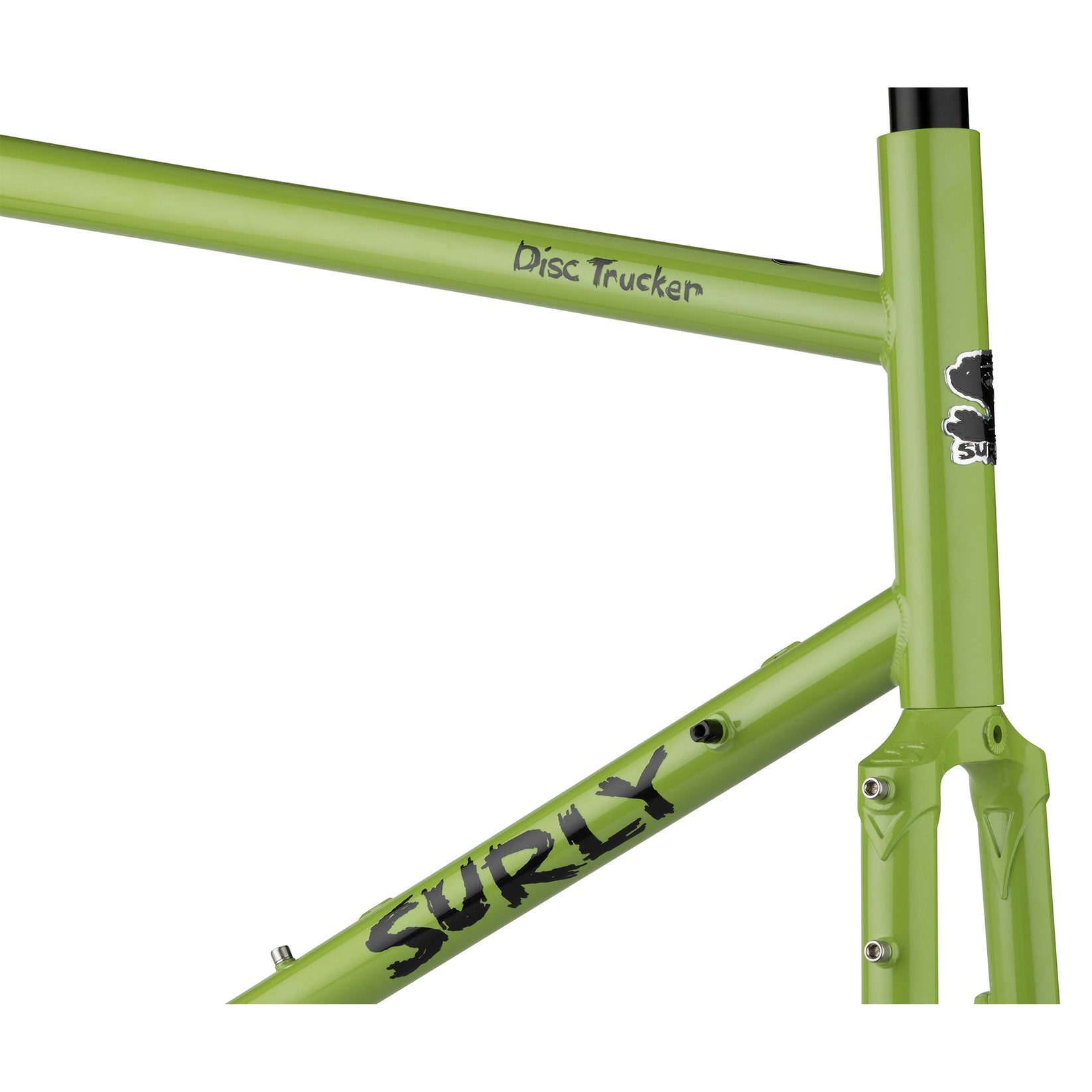

Frame: Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color: Pea Lime Soup

Fork: Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Components
Seatpost Clamp: Surly Stainless, 30.0mm

Frame Specs
Design Wheel/Tire Sizes
26 x 2.0" or 700c x 47mm
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rigid Fork Length
26": 376mm / 700c: 390mm
Fork Offset
45mm (26" & 700c)
Axle to Crown
26": 376mm / 700c: 390mm
Rear Spacing
12x142 (Axle included)
Rear Axle Size
Ø12 x 162, TP=1.5, TL=12
Front Brake (Rotor)
Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Headset - Upper
EC34/28.6
Headset - Lower
EC34/30
Front Spacing
12x100 (Axle included)
Front Axle Size
Ø12 x 118.5, TP=1.5, TL=12
Steerer Tube
Ø28.6mm (1-1/8")
Crown Race
Ø30mm (1-1/8")
Stem Clamp
Ø28.6mm (1-1/8")
Seatpost
Ø27.2mm
Dropper Post Compatible
No
Seatpost Clamp
Ø30mm
Front Derailleur Type
Bottom-pull (Ø28.6mm)
Bottom Bracket
68mm threaded (1.37" x 24TPI)
Crankset (Max Ring)
1x (Road): 47T / 2x (Road): 34/50T / 3x (Road): 33/47/56T
Accessory Mounts
Seatstay mounted spoke holder, Surly removable kickstand plate included with complete bikes
Bottle Mounts
3 Standard
Fork Mounts
2 Three-Pack, Rack mounts: upper, lower, and mid-blade threaded
Front Fender Mounts
Yes
Rear Fender Mounts
Yes
