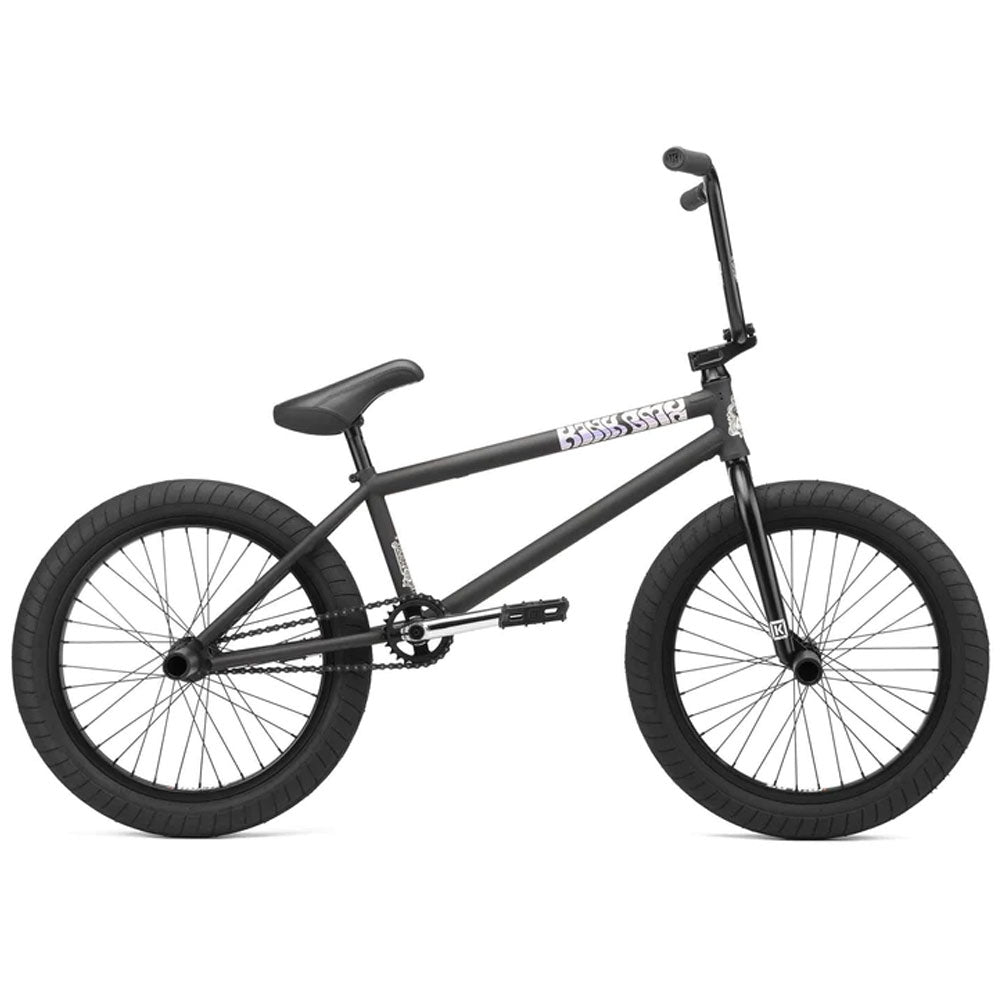

Kink Cloud 2023 Complete BMX Bike - Matte Iridescent Black

Kink Cloud BMX Bike Matte Iridescent Black: The Kink Cloud is Kink Pro team rider Travis Hughes’ signature bike. If you’ve seen Travis ride, you know there is just about nothing he can’t do on a bike, and the Cloud is based on his personal geometry preferences. Component wise, the Kink Cloud has got you covered with the included four plastic pegs and rear freecoaster wheel. The stealthy Matte Iridescent Black colorway really sets this bike apart without being flashy, and graphics inspired by Travis’s design ideas really finish off the look of this bike.
In addition to the full 100% 4130 chromoly frame and fork, the Cloud features an amazing list of components. This model comes with aftermarket Kink Rex 9.5” 13-butted 100% 4130 chromoly bars, Kink Ericsson Stealth seat, and Kink 2.4” Sever tires front and rear. The integrated seat clamp, removable brake design, and Mission Pace freecoaster rear wheel solidify the aftermarket look and feel to this bike. To top it all off, the Cloud of course comes standard with four Mission Targa plastic pegs.
GEOMETRY
TOPTUBE LENGTH - 21"
CHAINSTAY LENGTH - 13.25"
HEADTUBE ANGLE - 75.5°
SEATTUBE ANGLE - 71°
STANDOVER HEIGHT - 8.75"
BOTTOM BRACKET HEIGHT - 11.65"
FORK OFFSET - 26mm
TECHNICAL SPECIFICATIONS
FRAME - Kink Cloud 100% 4130 Chromoly
PEDALS - Kink Hemlock
FORK - Kink Trident Fork 100% 4130 Chromoly 1pc Steerer Tube Tapered Fork Legs
CHAIN - Mission 510H
BARS - Kink Rex Bars 9.5" 100% 4130 Chromoly 13-Butted TruTherm
SPROCKET - Kink Imprint 25T CNC 7075-T6
GRIPS - Kink Form, Thrust Barends
SEAT - Kink Ericsson Stealth
STEM - Kink Bold HRD 50mm
SEAT POST - Mission Aluminum Stealth
HEADSET - Mission Sealed Integrated (41.8 x 45)
SEAT CLAMP - Integrated
BRAKE LEVER - Mission Token
FRONT HUB - Mission Bond Sealed Bolt-In
BRAKE CABLE - Mission L4 Linear
REAR HUB - Mission Pace Sealed Freecoaster 14mm
BRAKES - Mission Cease V2 (Removable Mounts)
DRIVER - 9T
CRANKS - Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline
RIMS - Mission Mylar
BOTTOM BRACKET - Sealed Mid 19mm
TIRES - Kink Sever 2.4"
PEGS - 4 x Mission Nylon Pegs
WEIGHT - 27lb 1oz
